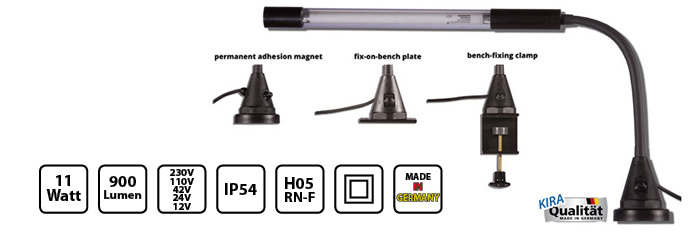

KE 4011/PL-A-M with permanent adhesion magnet
KE 4011/PL-A-P with fix-on-bench plate
KE 4011/PL-A-K with bench-fixing clamp
Working- and machine lamp with fluorescent tube 11 watt, flexible light holder tube, fixation optional with permanent adhesion magnet, mounting plate or screw clamp.
- Illuminant: compact fluorescent tube PL-S 11 Watt
- Protection tube: PMMA, impact resistant, 40mm Ø
- End cap: hard-PVC, gray
- Flexible light holder tube, length 300mm (optional 400mm)
- On-off switch, protected against water
- Fixation: optional magnet, mounting plate or screw clamp
- Protection category: IP54
- Protection class: II
- Cable: 5m H05RN-F 2x1,00mm²
- Voltage: 230V (optional 110V / 42V / 24V / 12V - on request)
|
KE 4011/PL-A Specifications
|
| Illuminant: |
Compact fluorescent lamp PL-S 11 Watt, 2pin, socket G23 |
| Voltage: |
230V (110V / 42V / 24V / 12V upon request)
|
| Protectiv tube: |
PMMA, 40mm Ø |
| Lumen: |
900
|
| Installation: |
with magnet, plate or clamp
|
| Light holder: |
flexibel, 300mm
|
| Cable: |
5m H05RN-F 2x1mm² |
| Plug: |
Schuko-Contour-Plug |
| Protection Category: |
IP54 |
| Identification: |
CE |
| Length of the lamp: |
760 mm |
|
